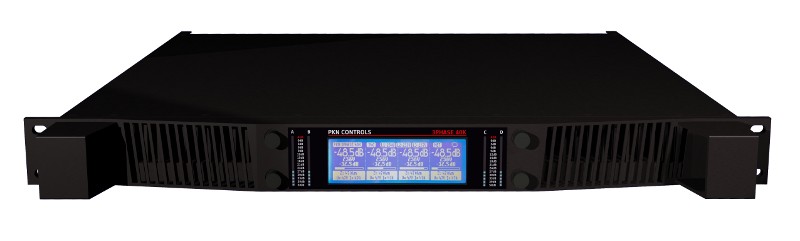

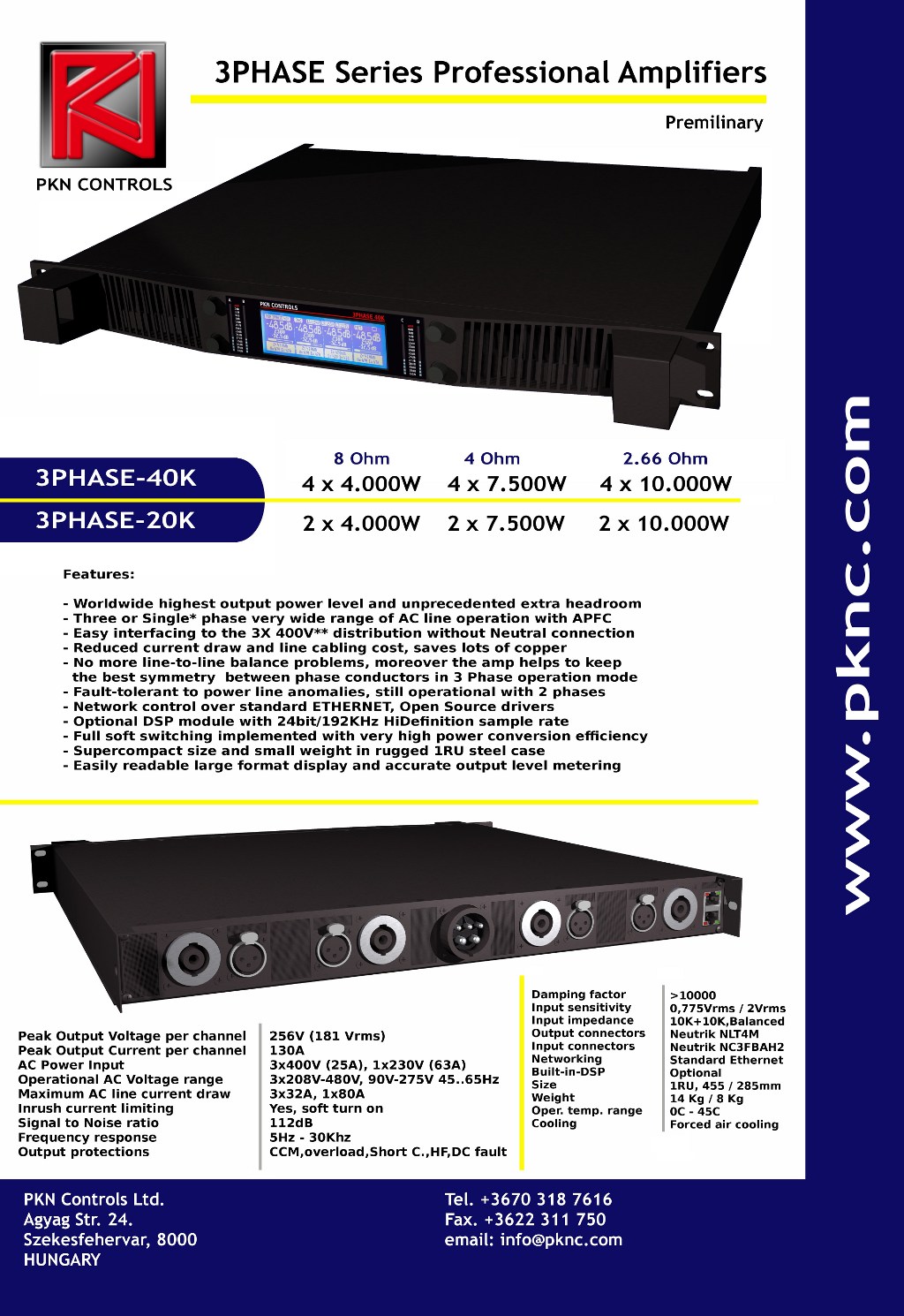

PKN 3PHASE SERIES
 Networkable Digital Power Amplifiers




  Products table:

Model 4 Ohm 8 Ohm 2.66 Ohm
PKN 3PHASE 40K
4 x7500W
4 x 4000W 4 x 10000W
PKN 3PHASE 20K
2 x 7500W
2 x 4000W
2 x 10000W



Features:

- Worldwide highest output power level and greatest extra headroom
- Three or Single* phase very wide range of AC line operation with APFC
- Easy interfacing to the 3X 400V** distribution without Neutral connection
- Reduced current draw and line cabling cost, saves lots of copper
- No more line-to-line balance problems, moreover the amp helps to keep
  the best symmetry  between phase conductors in 3 Phase operation mode
- Fault-tolerant to power line anomalies, still operational with 2 phases
- Network control over standard ETHERNET, Open Source drivers
- Optional DSP module with 24bit/192KHz HiDefinition sample rate
- Full soft switching implemented with very high power conversion efficiency
- Supercompact size and small weight in rugged 1RU steel case
- Easily readable large format display and accurate output level metering







Specifications:


PKN 3PHASE 40K* PKN 3PHASE 20K*
Output Power

8R 4X 4000W 2X 4000W
4R 4X 7500W 2X 7500W
2.6R 4X 10000W 2X 10000W
Bridged Output Power

16R 2X 8000W 8000W
8R 2X 15000W 15000W
4R 2X 20000W 20000W
Peak Output Voltage per channel 256V (181Vrms)
Peak Output Current per channel 130A
AC Power input Option 1: Three Phase 3X 400V (25A**)

Option 2: Single phase 230V (63A**)
Operational AC Voltage range Option 1: 3X 208V- 3X480V 45...65Hz Still operational in case of single phase loss

Option 2: 90V- 275V** 45...65Hz 400Vac proof in single-phase mode
Maximum AC line current draw Option 1: 3X 32A 3X 16A

Option 2: 80A 40A
Inrush current limiting Yes, very soft turn-on
Signal to Noise ratio (with “A-weighed” filter) 112dB
Frequency response 5Hz – 30KHz
Output protections CCM (0 Ohm STABLE), Overload, Short circuit, HF, unmatched loads, DC fault, lost connection, Programmable limiters
Damping factor (100Hz, 8R****) >10000
Input sensitivity (analog inputs) 0.775Vrms or 2Vrms (configurable from the menu)
Input impedance 10K+10K, Balanced

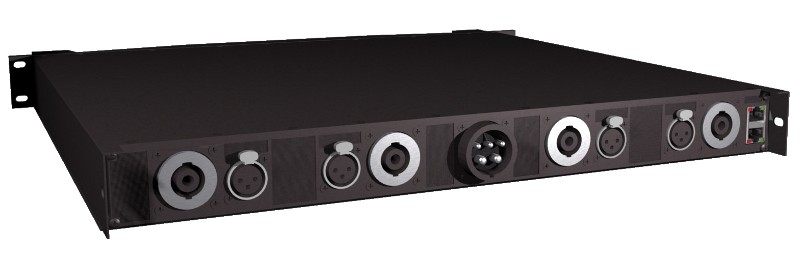

Output connectors 4X NEUTRIK NLT4M* 2X NEUTRIK NLT4M*
Input connectors 4X NEUTRIK XLR 2X NEUTRIK XLR
Networking Standard Ethernet
Built-in DSP Optional
Size 1RU, 455mm depth 1RU, 285mm depth
Weight ~13,7 kg ~8 kg
Operational temperature range 0C - +45C
Cooling Forced air cooling with hidden high-performance FANS , Front to rear airflow


* Projected availability 2012/Q1, Three or single phase power line operation
** There is a possibility of multiple line-current limiting methods from the menu booth in three and single phase mode
*** Maximum performance is around 3X400V or 230V operation, bellow 208V the sustained output power performance drops, please see the deration graphs(1).
**** Measured directly on the output points
Preliminary Specificiations are subject to change without prior notice

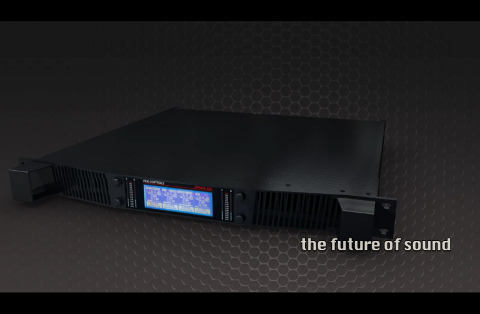

PKN 3PHASE Promotional Video
