XE Series

 Networkable Digital Power Amplifiers

The XE Series professional amplifiers are designed for portable and fixed installations. These models available: XE2500, XE4000, XE6000. All type have graphics LCD display and two JOGs for change system parameters.  The devices have internal webserver for remoting. There are two possible ways to use the remote control functions:  with normal internet browser (JAVA based), and with PKNC control software.

 Products table:

Model	4 Ohm	8 Ohm
XE 2500	1300 W + 1300 W	700 W + 700 W
XE 4000	2100 W + 2100 W	1300 W * 1300 W
XE 6000	3650 W + 3650 W	1900 W * 1900 W

Features:
     - High output power and high efficiency
     - Advanced high frequency switching technology
     - Small size, low weight, ideal for touring applications
     - Networkable amplifier over standard Ethernet
     - AMPControl software and JAVA based control
     - All functions can be accessible by remote
     - Graphics LCD for easy setup and diagnostics
     - Two JOG button for fast navigating
     - Digital volume and input sensitivity control
     - Built-in programmable limiter
     - Output Peak and average Voltage,Current measuring
     - Displays actual load impedance
     - Embedded webserver for set&view parameters by a web browser
     - Five user profiles
     - Intelligent protective functions
     - High frequency resonanat power supply with active PFC function
     - Wide mains voltage operation range














 LCD Screenshots:

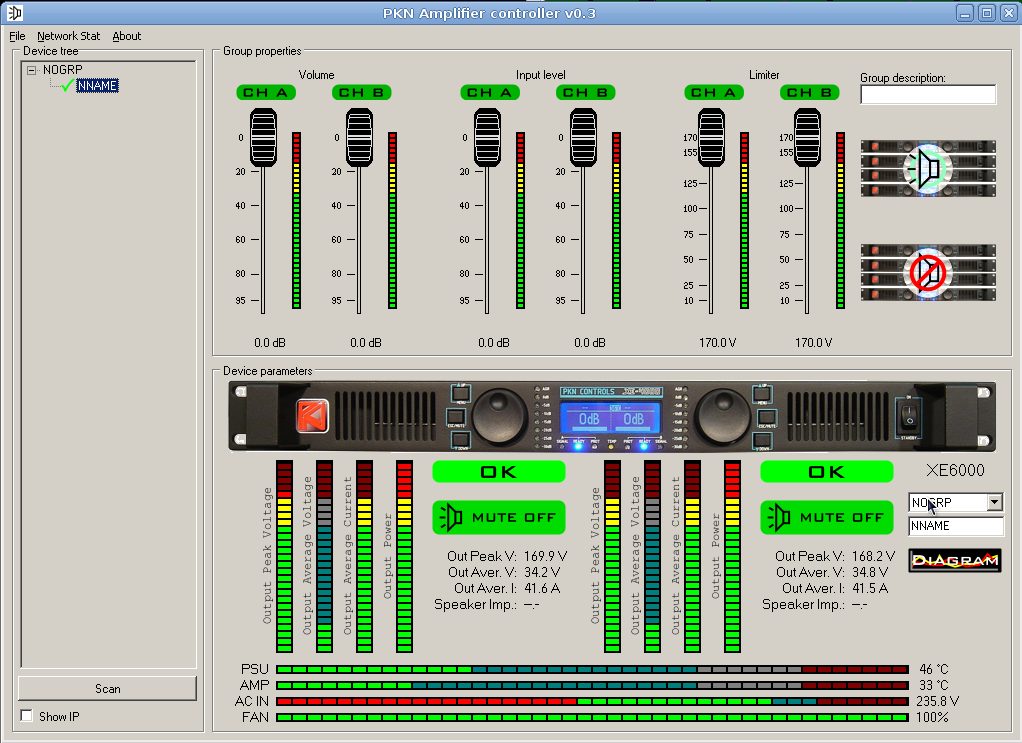

 AmpControl Software:

Our own Windows based control software for XE series digital amplifiers. This program ideal for bigger installations. Easy to configuration all parameter of
amplfiers. This controls software can work with amplfier groups.




Specifications:

	PKNC XE2500	PKNC XE4000	PKNC XE6000
Name	Professional power amplifier
Power requirements	160V – 270 VAC, (50-60Hz)
Max. power consuption	2600W	5500W	7900W
Soft starting	yes
Power supply	High frequency resonant includes active PFC
Mains connection	NEUTRIK POWERCON
Working temperature range	0 - 40C
Storage temperature range	-25C - 60C
Output power @ 8 Ohms	700W + 700W	1300W + 1300W	1900W + 1900W
Output power @ 4 Ohms	1300W + 1300W	2100W + 2100W	3650W + 3650W
Minimum load impedance	2 Ohm
Frequency ( +/- 3dB , 8Ohm )	5Hz - 20KHz
Slew rate	50V / us		60V / us
Damping factor	400	500	600
End stages	High frequency semi soft switched PWM in balanced configuration
Output connections	Four pole NEUTRIK SPEAKON (1+2+ in parallel,1-2- in parallel)
Signal to Noise ratio A-Weighted 20Hz-20KHz	100 dB	102 dB	107 dB
Nominal sensitivity for maximum output level (balanced)	1.4V (rms)	1.7V (rms)	1.7V (rms)
Input impedance (referred to ground)	10KOhm +10KOhm (+/- 1%)
Input terminals	NEUTRIK XLR
Built in limiter	Programmable limiter
Output level meter	Ledbar, status leds
Display	Graphics LCD
Control terminals	JOGs, buttons
Volume control	Set by control jog wheels or remote -95,5dB – 0dB (in 0.5dB steps)
Input sensitivity	-95.5dB – 0 dB (steps 0.5 dB)
Limiter settings range	10 - 100 V	10 - 155 V	10 - 170 V
User profiles	5 user profile
Protections	Short circuit,Overload,low impedance,thermal,DC fault
Cooling	Forced air cooling with regulated DC fans
Direction of air flow	Front to rear
Remote control	10/100 Mps ETHERNET
Weight	8 Kg	9 Kg	9.5 Kg
External dimensions	19” rack 483mm * 440mm * 44mm (1RU)
